Truck Mounted Boom Lift

Truck Mounted Boom Lift Specification

Turning Radius
Depends on Truck Model

Brake
Hydraulic Brake System

Lifting Speed
12-15 m/min

Material
High Strength Steel

Traveling Speed
40-80 km/h (Truck Speed)

Driver Motor
Hydraulic Motor

Surface
Painted

Installation
Mounted on Commercial Truck Chassis

Condition
New

Type
Truck Mounted Boom Lift

Application
Aerial Work, Maintenance, Construction, Street Lighting, Signboard Installation

Power Source
Diesel Engine

Loading Capacity
200 kg

Lifting Time
Approx. 60-90 Seconds

Lifting Capacity
200 kg

Lifting Height
Up to 36 Meters

Dimension (L*W*H)
Varies by Model (e.g., 7100 x 2350 x 3300 mm)

Outriggers
Hydraulic, 4 Nos for Safe Stabilization

Platform Dimensions
1.2 m x 0.8 m (Approx)

Maximum Working Radius
Up to 18 Meters

Color
Yellow or as Per Request

Safety Features
Anti-Slip Platform, Interlock System, Overload Sensor, Emergency Stop Switch

Standards Compliance
EN280 / IS: 17055

Platform Rotation
360 Degrees Continuous

Control System
Electro-Hydraulic with Proportional Controls

Emergency Lowering System
Provided

Chassis Compatibility
Available for Various Truck Brands

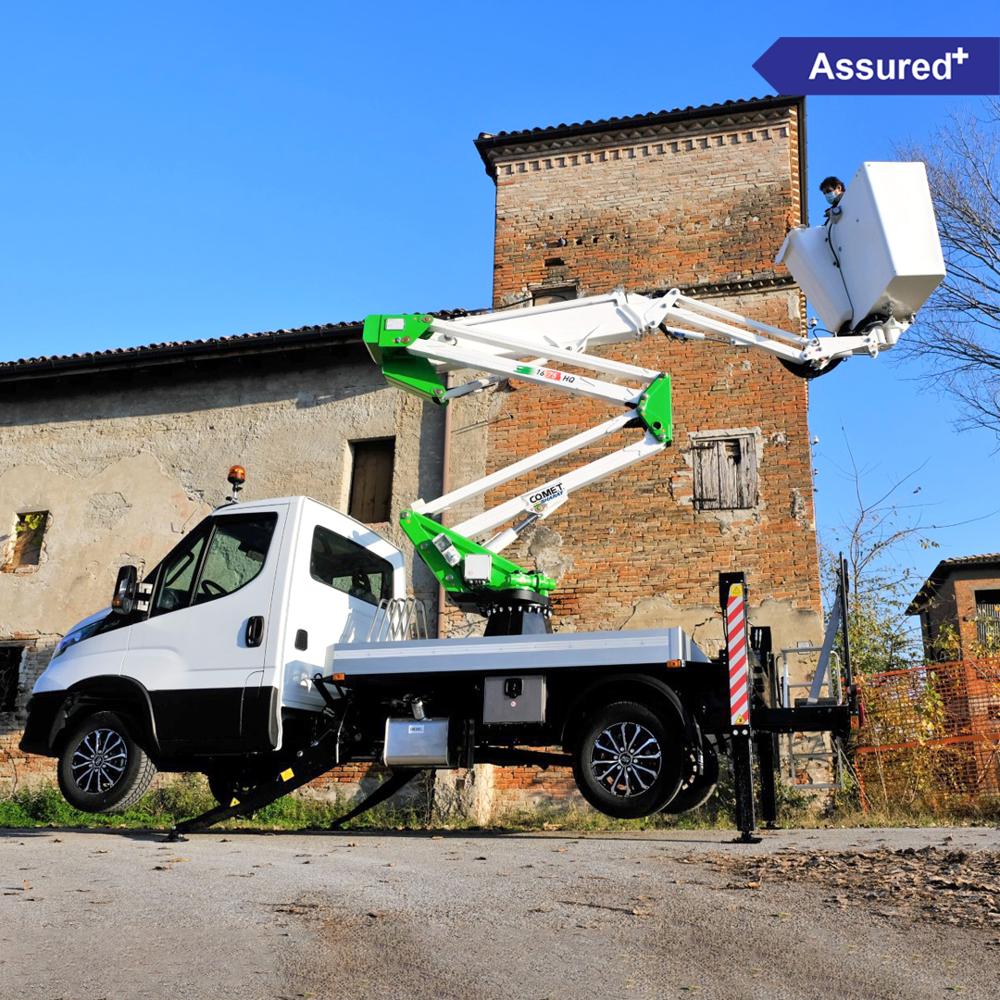

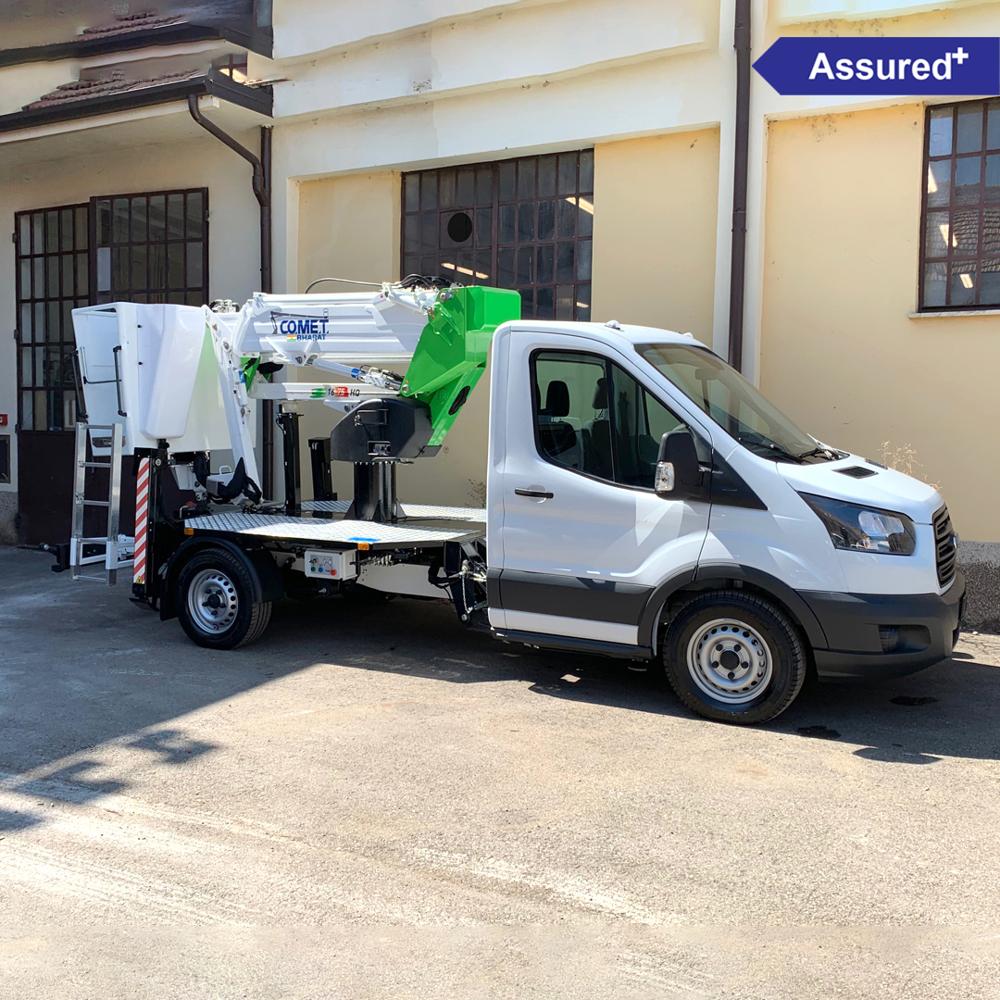

About Truck Mounted Boom Lift

CO.ME.T OFFICINE S.P.A. - that stands for Construction Mechanical and Transportation systems - was founded in 1960 and has been the first company to introduce in Europe the concept of platform for aerial works, equipment that finally enabled operators to work safely and with comfort at high altitude.

CO.ME.T. Officine produces several types of Aerial Platforms with various working heights from 11m to 45 meters, assembled on Trucks, Pickup, Trailer or Crawler.

In India and SAARC countries Sales and Service support provided through COMET Bharat (Ernisco ..complete company name) with vision to manufacture certain models in India.

Exceptional Stability and Safety

Equipped with four hydraulic outriggers and multiple integrated safety systems, this truck-mounted boom lift ensures maximum stability. Key safety features include an anti-slip platform, interlock system, overload sensor, and readily accessible emergency stop switch, creating a secure environment for operators even at full extension.

Advanced Control and Rotation

The boom lift is fitted with an electro-hydraulic proportional control system, allowing for precise adjustments. Its 360-degree continuous platform rotation empowers operators to access hard-to-reach spots without repositioning the truck, increasing overall efficiency during operation.

Versatile Applications and Compatibility

Compatible with various truck brands and available in custom colors, this lift is tailored for multiple industries, from civil construction to street lighting. Its durable construction with high-strength steel ensures longevity and reliable performance, even in demanding job-site conditions.

FAQ's of Truck Mounted Boom Lift:

Q: How does the 360-degree platform rotation benefit operators during elevated work?

A: The continuous 360-degree rotation allows operators to reach any position around the boom lift without needing to reposition the entire vehicle. This improves operational efficiency and safety by minimizing unnecessary movement and providing greater flexibility when working at height.

Q: What safety systems are incorporated into the truck-mounted boom lift?

A: Safety is prioritized through features such as four hydraulic outriggers for stabilization, an anti-slip platform surface, an interlock system, overload sensors, an emergency stop switch, and compliance with EN280/IS:17055 safety standards. These mechanisms work together to ensure stable, secure, and reliable operation.

Q: When is this boom lift ideally used, and for what types of tasks?

A: This truck-mounted boom lift is ideal for tasks that require secure elevated access, such as building maintenance, electrical or street lighting installation, civil construction, and signboard mounting. Its high lift and reach capabilities make it suitable for various public, industrial, and commercial applications.

Q: Where can the truck-mounted boom lift be installed and used?

A: The unit is designed for easy installation on the chassis of commercial trucks from various manufacturers. It can be deployed in diverse environments including urban streets, industrial facilities, construction sites, and outdoor venues where safe and flexible height access is necessary.

Q: What is the process for operating the electro-hydraulic control system?

A: Operators use proportional electro-hydraulic controls, which enable smooth and precise boom and platform movements. Training is recommended, but the intuitive system allows quick mastering, ensuring safe maneuvering and efficient positioning at different heights and angles.

Q: How long does it take to reach maximum lifting height, and what power source does it use?

A: Lifting time to full height is approximately 60 to 90 seconds, powered by a reliable diesel engine that drives a hydraulic motor. This fast and efficient lifting speed, combined with the truck's mobility, enables rapid deployment across multiple sites.

Q: What are the primary benefits of choosing this truck-mounted boom lift for your projects?

A: This boom lift offers exceptional reach, stability, and safety, making it a valuable asset for aerial applications. Its adaptability to various truck brands, robust build, comprehensive safety systems, and straightforward operation all contribute to improved site productivity and operator confidence.
