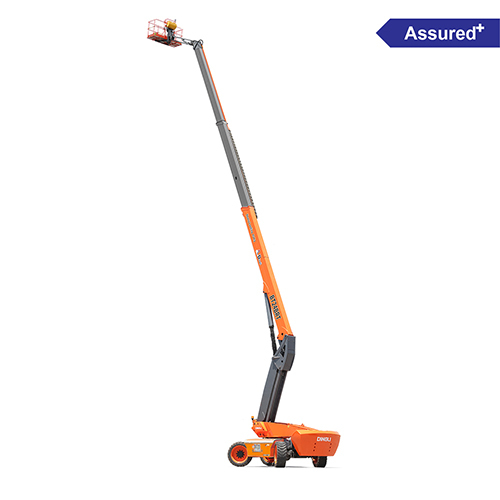

Boom Lift BT24BERT

Boom Lift BT24BERT Specification

Load Capacity
230 kg

Noise Level
<70 dB

Usage
Indoor & Outdoor Aerial Work

Voltage
24 V

Car Dimension
1400 mm x 700 mm

Inclination
Gradeability 20%

Type
Articulated Boom Lift

Door Opening Size
900 mm x 2000 mm

Material
High-strength steel

Drive Type
Electric

Power Supply
Electric

Speed
0.5-5 km/h

Max. Lifting Height
14 m

Max. Lifting Weight
230 kg

Mechanism Type
Electric powered, Articulated arm

Working Temperature
-20C to +50C

Control Device
Joystick

Safety Device
Emergency stop, Overload protection, Guard rails

Capacity
230 kg

Overall Dimensions
6500 mm x 1750 mm x 2100 mm

Platform Entry Height
1100 mm

Max. Horizontal Reach
7.5 m

Charging Time
8-10 hours

Battery Type
Lead-acid battery

Ground Clearance
220 mm

Color
Yellow

Tire Size
16 x 5

Wheel Type
Solid rubber

Weight
6800 kg

Platform Rotation
160°

Turning Radius
2.2 m

Maximum Working Slope
3°

Boom Lift BT24BERT Trade Information

Main Domestic Market
Uttar Pradesh

About Boom Lift BT24BERT

Take advantage of the Boom Lift BT24BERT, engineered for resplendent functionality and wondrous versatility in both indoor and outdoor applications. This finest articulated boom lift, colored in striking yellow, offers a max lifting height of 14 m and a horizontal reach of 7.5 m, ensuring you find elevated solutions with ease. Its robust lead-acid battery powers efficient movement, while solid rubber wheels and high-strength steel construction deliver enduring safety and reliability. Equipped with advanced safety devices, joystick control, and a noise level below 70 dB, the BT24BERT guarantees superior performance. Experience seamless aerial work, supported by Markdown pricing from a renowned exporter, manufacturer, supplier, and trader in India.

Boom Lift BT24BERT: Special Features and Versatile Usage

The Boom Lift BT24BERT stands out with its articulated arm mechanism, electric-powered drive, and advanced emergency stop and overload protection features. Designed for indoor and outdoor aerial work, it is widely used by contractors, maintenance teams, facility managers, and service providers seeking safe and reliable elevated access. Its joystick control, solid rubber wheels, and resplendent yellow finish make it a top choice for projects requiring precision, flexibility, and optimal performance in diverse environments.

Payment, Packaging, and Export Details for BT24BERT

Find secure payment terms for the Boom Lift BT24BERT with flexible domestic mar options. This finest equipment is meticulously packaged for express shipping, ensuring safe transit to clients. Sample units are available upon request, reflecting customer-centric service. Export markets primarily include South Asia, the Middle East, and Africa, with robust distribution supported by leading exporters and traders in India. Take advantage of reliable delivery, quality assurance, and responsive support in every order.

FAQ's of Boom Lift BT24BERT:

Q: How does the articulated boom mechanism of the BT24BERT enhance aerial work efficiency?

A: The articulated boom mechanism provides flexible movement and reach, enabling operators to access hard-to-reach locations safely and easily, making it ideal for tasks requiring precision at elevated heights.

Q: What safety devices are installed on the Boom Lift BT24BERT?

A: The BT24BERT is equipped with multiple safety devices, including emergency stop, overload protection, and robust guard rails, ensuring maximum operator safety during usage.

Q: When is the optimal time to charge the lead-acid battery, and how long does it take?

A: Charging should be done after extended usage or when battery levels are low. It takes approximately 8 to 10 hours to fully recharge the battery for next operation.

Q: Where is the Boom Lift BT24BERT commonly used?

A: This boom lift is utilized both indoors and outdoors for construction, maintenance, facility management, and other aerial tasks, offering versatile performance in various environments.

Q: What is the process for ordering and receiving the Boom Lift BT24BERT internationally?

A: Prospective buyers can request samples, secure their orders through agreed payment terms, and benefit from express shipping and careful packaging to ensure quick and safe delivery worldwide.
